Alphacen 300 Drive

Your Wafers Analyzed



The Alphacen 300 Drive is an advanced atomic force microscopy (AFM) system engineered for 300 mm wafer metrology. Its precise tip-scanning platform delivers exceptionally low-noise, stable, and reproducible measurements. With WaveMode technology, the system achieves up to 15× faster line rates than conventional in-air AFM while preserving tip sharpness — enabling rapid, high-resolution analysis and consistent results, ensuring rigorous quality control in demanding semiconductor environments.



Speak with an Expert

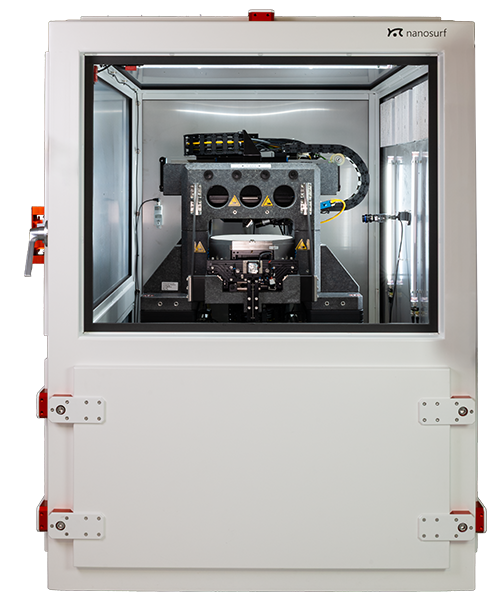

Alphacen 300 Drive

Robust Surface Roughness Metrology

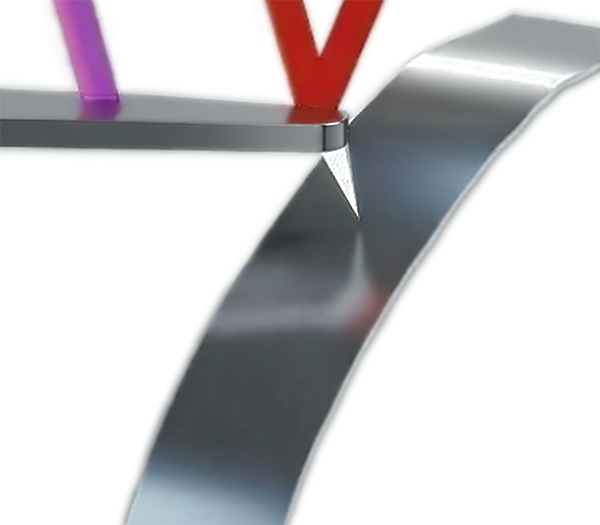

The Alphacen 300 Drive delivers highly reproducible, Angstrom-level surface roughness metrology, achieved through advanced stage engineering and WaveMode—Nanosurf’s photothermal off-resonance imaging technology. WaveMode ensures consistently low, quantitative tip-sample interaction forces during imaging, maintaining tip sharpness over extended use. This robust performance supports user-friendly operation and minimizes total cost of ownership.

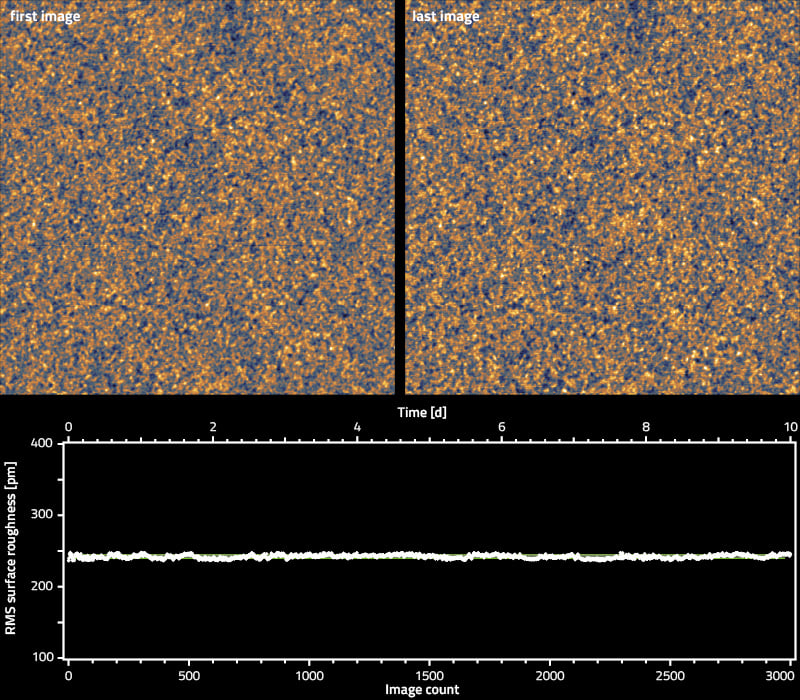

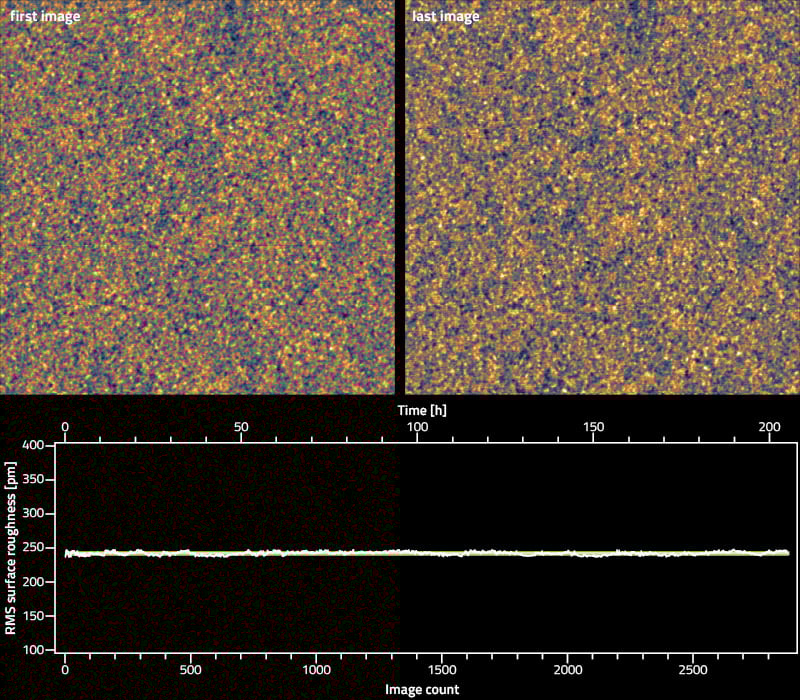

Image: Time-series of surface roughness measurements of a silicon wafer using WaveMode. Images in the top row show images at the beginning of the series and after nearly 9 days. The graph below shows the roughness determined from each image of the series.



Alphacen300Drive_roughness_time_series_800x700px

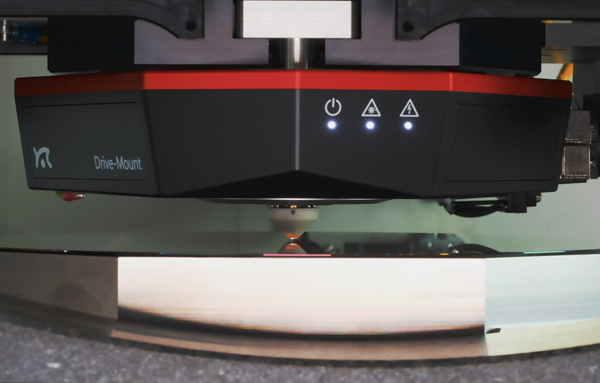

Ultra-Stable Stage Design

The Alphacen 300 Drive is designed to ensure reliable measurements, even on ultra-smooth surfaces. Its ultra-stable stage provides low noise, high stability, and sub-micron positioning accuracy to meet the requirements of complex sample analysis. Based on more than two decades of experience in industrial stage engineering, the system offers the rigidity and performance necessary for high-performance AFM metrology.

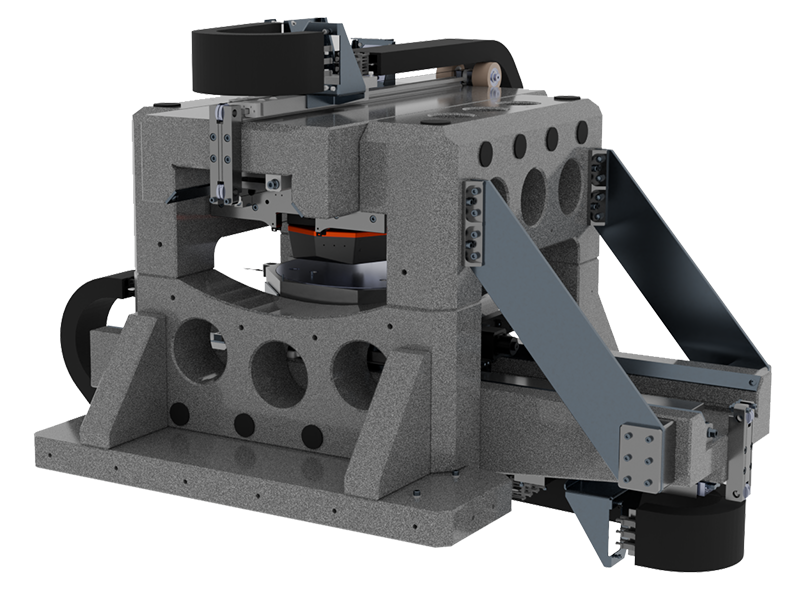

Alphacen_300_Drive_Stage_800x593px

Automation

The Alphacen 300 Drive is equipped with automation features to streamline measurement workflows. Automatic wafer and cantilever alignment, and support for KLARF file-based routines increase operational efficiency. The programmable 300 × 300 mm² sample stage, together with WaveMode technology, ensures precise and consistent measurement of surface roughness and dimensions across the full wafer area.

NASS---Process-Stability

Fastest Angstrom-Level Surface Roughness Metrology

Faster yet accurate assessment of surface roughness is achieved with WaveMode, which overcomes the limitations of conventional in-air imaging modes and substantially increases imaging speed.

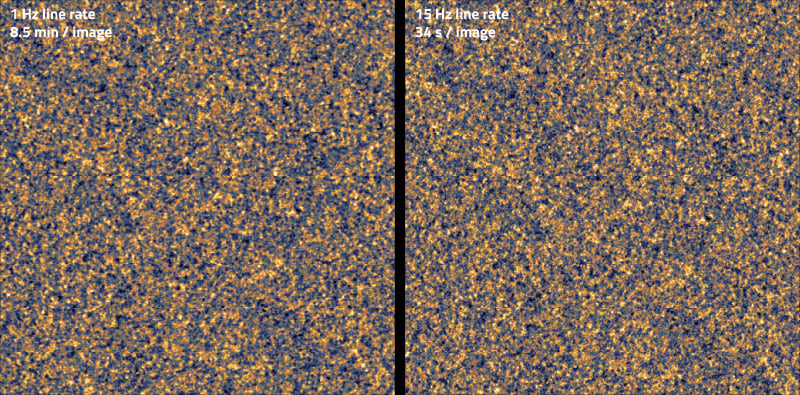

Image: Comparison of silicon wafer surfaces acquired at the standard 1 Hz line rate and at the 15 Hz line rate achievable with the Alphacen 300 Drive.







WaveMode_1Hz_15Hz_surface_roughness_800x395px

Alphacen 300 Drive Features

WaveMode
Imaging

100 µm x 100 µm
Scan Range

FastScanning
Option

Automatic Cantilever Alignment

Sub-Micron Absolute Positioning Accuracy

Measurement Automation

Automatic Wafer Alignment

300 mm and 200 mm Wafer Chucks

Sample Observation Camera

Alphacen 300 Drive Operating Modes

Standard imaging modes

  • Static Force Mode
  • Lateral Force Mode
  • Dynamic Force Mode (Tapping Mode)
  • Phase Imaging Mode

Electrical properties

  • Conductive AFM (C-AFM)
  • Scanning Spreading Resistance Microscopy (SSRM)

Advanced imaging modes

  • CleanDrive photothermal excitation
  • WaveMode
  • WaveMode NMA

Mechanical properties

  • Force Mapping (Stiffness and Modulus, Adhesion)
  • Force Spectroscopy

Nanosurf Studio – Just Press Play

Our software engineers and application scientists thoroughly examined the user experience of conducting atomic force microscopy (AFM) measurements to deliver a solution that enables you to concentrate on your experiments and results. Just Press Play.

  • Personalize your software interface to accommodate both expert and novice users
  • Benefit from fully automated AFM setup, including laser alignment, spring constant and sensitivity calibration, tip approach, and data acquisition
  • Utilize advanced wafer automation features, including automated wafer alignment and KLARF file import.
  • Navigate your samples confidently with integrated ViewPort optical sample navigation
  • Experience a platform that is intuitive for beginners, yet provides advanced flexibility for experienced users
  • Take advantage of fully scriptable instrument control for custom automation and integration
Learn more

Download the Alphacen 300 Drive Brochure

The PDF brochure includes details on the Alphacen 300 Drive technology, application examples for different areas of interest and system specifications.

Download Brochure
Alphacen_300_Drive_Brochure_thumbnail

No posts available

Interested in Alphacen 300 Drive?

Get to know the Alphacen 200 Drive! Reach out to us to discuss your application with one of our seasoned AFM experts, to get a budgetary quote or schedule a product demonstration or exploratory meeting.
