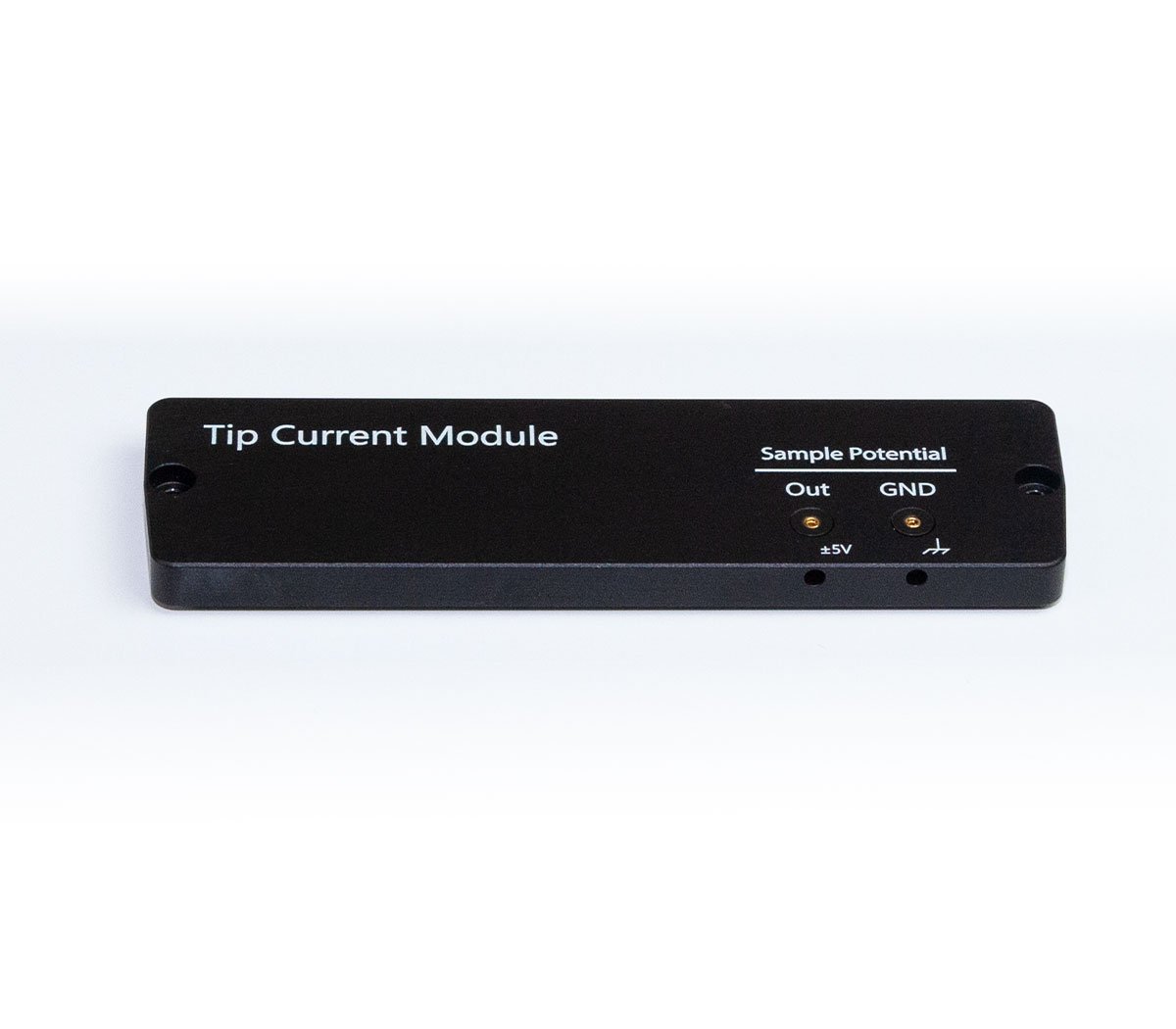

Tip Current Module
- Linear current amplifier for DriveAFM
- 3 amplifier gain stages
- Two ground options – external or scan head
Specifications
| Current range | ±0.5 mA, ±5 μA, ±50 nA | |
| Current-to-voltage conversion | 1x10⁴, 1x10⁶, 1x10⁸ V/A | |
| Current noise figures | 1.3 pA/√Hz, 0.13 pA/√Hz, 0.01 pA/√Hz | |
| Dimensions | 110 x 31 x 6 mm³ | |
| Weight | 0.040 kg | |
| Compatibility | DriveAFM | |
